2 Axis EDM Wire Cutting

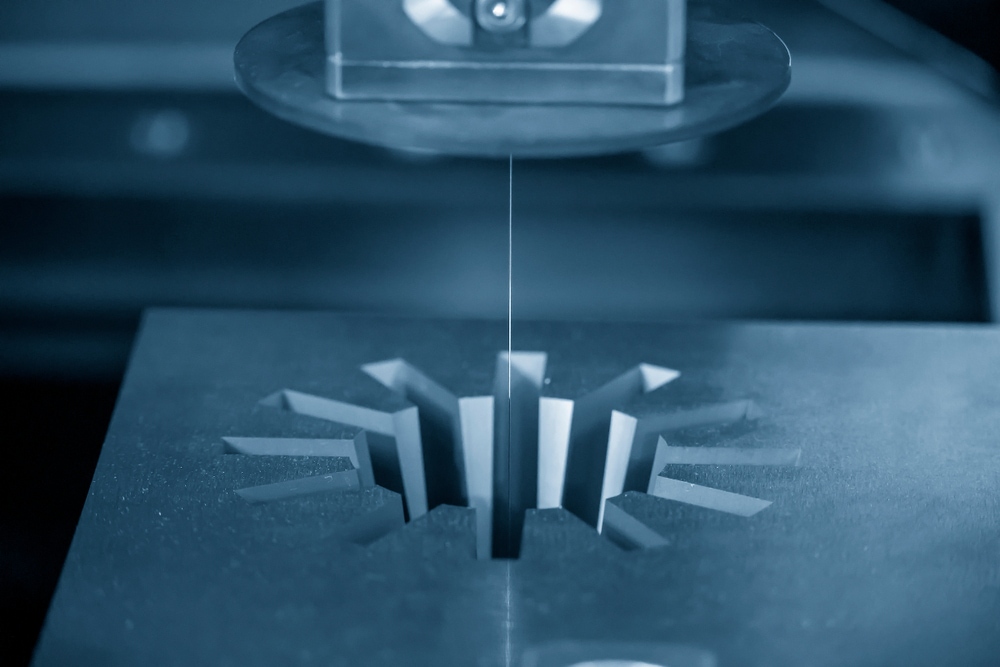

Wire Cutting Machine

The wire cutting machine stands out as a cornerstone technology, fundamentally transforming the production capabilities of industries worldwide. This advanced tool, renowned for its precision, versatility and efficiency, is not just a thing; it’s a game-changer in how materials are shaped and designs are realised.

The machine excels in producing intricate shapes and patterns that would be challenging or impossible to achieve with traditional machining methods. Its ability to cut through materials with high precision ensures minimal waste and optimal use of resources, making it an eco-friendly choice for conscious manufacturing practices.

Moreover, the versatility of the machine extends its utility beyond simple cuts. It enables the creation of complex geometries in a variety of materials, from metals to composites, opening new avenues for innovation in product design and development. This capability is invaluable in industries where precision is paramount, such as aerospace, electronics and medical devices.

Its automated processes reduce the need for manual intervention, speeding up production times and lowering labour costs. This efficiency, combined with the machine’s reliability, ensures that manufacturing workflows are streamlined and more productive, with a significant reduction in downtime.

2 Axis EDM Wire Cutting

EDM Wire Cutting Service

The advent of EDM Wire Cutting technology has been a boon for industries seeking precision, efficiency and versatility in their manufacturing processes. Below, we outline common problems faced in the absence of this revolutionary technology and how it offers effective solutions:

  • Inconsistent Precision: Traditional cutting methods often struggle to maintain consistent precision, especially when working with complex shapes or delicate materials. EDM Wire Cutting eliminates this issue by providing unparalleled accuracy, ensuring every piece meets exact specifications.
  • Material Limitations: Many manufacturing techniques are limited by the type of materials they can effectively work with. EDM Wire Cutting shines in its ability to cut through virtually any conductive material, opening up a realm of possibilities for industries that work with diverse materials.
  • High Production Costs: Conventional cutting methods can be slow and labour-intensive, leading to higher production costs. EDM Wire Cutting optimises the manufacturing process, reducing labour costs and increasing throughput with its automated and precise cutting capabilities.
  • Complex Design Limitations: Achieving intricate designs can be challenging with traditional machining, often requiring multiple processes that increase the risk of errors. Wire Cutting enables the production of complex geometries in a single step, enhancing design capabilities without compromising quality.
  • Increased Waste: Traditional methods may result in significant material waste due to their lack of precision. Wire Cutting is known for its material efficiency, reducing waste and thereby supporting more sustainable manufacturing practices.

By addressing these common challenges, EDM Wire Cutting not only improves manufacturing outcomes but also drives innovation, efficiency and sustainability in production processes.

Unlocking Precision and Flexibility with Wire EDM Technology

The manufacturing landscape has been revolutionised by the introduction of Wire EDM (Electrical Discharge Machining) technology, providing solutions that surpass traditional machining methods in precision, versatility, and efficiency. Particularly, 2 Axis Wire EDM offers a unique set of advantages that cater to the evolving needs of industries demanding intricate detailing and superior accuracy in their components.

Here’s how Wire EDM and its 2 Axis capabilities are making a significant impact:

  • Unmatched Precision: Wire EDM stands out for its ability to produce parts with exceptional accuracy. This precision is invaluable in industries where even the slightest deviation can compromise the functionality of a component, such as in aerospace, medical devices, and tool and die-making.
  • Material Versatility: One of the remarkable advantages of Wire EDM is its capability to work with a wide array of conductive materials, regardless of their hardness. This versatility opens up new possibilities for manufacturing complex parts from materials considered challenging or even impossible to machine using traditional methods.
  • Complex Geometries and Fine Details: This capability is crucial for producing components with complex geometries, tight tolerances, and smooth finishes, all of which are essential for high-performance applications.
  • Reduced Material Waste: By precisely cutting parts without the need for forceful contact, it minimises excess material removal, promoting sustainable manufacturing practices.
  • Minimal Tool Wear: Unlike conventional machining that involves physical contact and consequent wear on tools, Wire EDM operates without direct contact between the tool and the workpiece.
  • Enhanced Productivity: The automation capability of Wire EDM, particularly with 2 Axis Wire EDM setups, streamlines the production process, allowing for continuous operation with minimal supervision.

In essence, the Wire EDM process, empowered by 2 Axis Wire EDM technology, offers a suite of advantages that significantly enhance manufacturing outcomes. It’s not just about cutting materials; it’s about advancing precision, efficiency and innovation in the manufacturing sector.

FAQS

EDM Wire Cutting is a precise manufacturing process that utilises a thin, electrified wire to cut conductive materials with exceptional accuracy. This method is distinguished by its ability to produce complex shapes and intricate details that are often challenging or impossible to achieve through traditional machining techniques. The benefits of incorporating EDM Wire Cutting into your manufacturing process include:

  • Precision and Accuracy: Capable of achieving tight tolerances and fine finishes, making it ideal for high-precision components.
  • Material Versatility: Effectively cuts through any conductive material, regardless of hardness, including hardened steel, titanium, and superalloys.
  • Complex Geometries: Easily handles complex shapes and delicate parts without inducing stress or distortion.
  • Reduced Setup Times: Simplifies the production process for complex parts, reducing the need for multiple setups and specialised tooling.

Wire EDM (Electrical Discharge Machining) differs significantly from traditional machining methods by employing thermal energy to remove material rather than mechanical force. This distinction offers several key advantages:

  • No Physical Contact: Eliminates mechanical stresses and potential deformation of the workpiece, preserving the integrity of the material.
  • High Precision: Achieves superior accuracy and surface finishes, suitable for detailed and delicate components.
  • Material Hardness Irrelevant: Capable of machining parts from extremely hard materials without affecting the cutting speed or finish quality.
  • Minimal Tool Wear: As there is no physical contact between the tool and the workpiece, tool wear is significantly reduced, extending tool life and reducing costs.

A Wire Cutting Machine is designed with several key features to enhance its efficiency and versatility in manufacturing environments:



  • Automatic Wire Threading: Enables quick setup and reduces downtime between cuts, enhancing productivity.
  • Variable Cutting Speeds: Adjusts the speed of the wire based on the material and the complexity of the cut, optimising cutting efficiency.
  • Taper Cutting Abilities: Allows the machine to cut tapers and unique shapes by moving the wire in multiple axes simultaneously.
  • Programmable Control System: Offers precise control over the cutting process, with the ability to store and recall cutting parameters for repeat jobs.

2 Axis Wire EDM offers unique advantages over other machining processes, particularly when it comes to the production of flat, intricate parts with high precision:

  • Simplified Operation: The 2-axis movement allows for straightforward operation and programming, making it easier to produce flat components with complex outlines.
  • Cost-Effectiveness: Reduces the need for complex fixturing and additional machining processes, lowering the overall production costs.
  • Enhanced Precision: Ideal for producing precise cuts and fine details on flat workpieces with excellent surface finishes.
  • Material Efficiency: Minimises material waste, as the narrow kerf of the wire, allows for closely nested parts and efficient material utilisation.
Custom machining involves creating parts that are not found elsewhere. Tailored CNC machining is often required for industries dealing with complex components that cannot be produced using traditional methods. With custom machining, the production of quality parts for demanding applications is possible.
